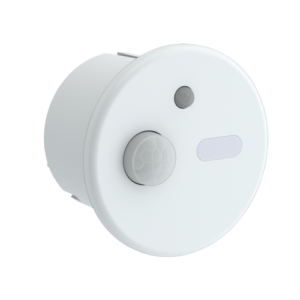

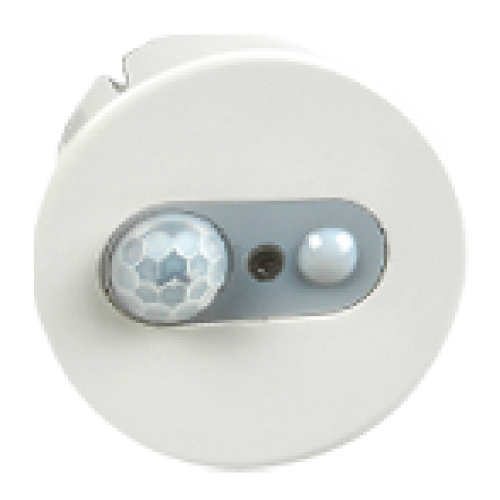

The EC-Multi-Sensor Series combines a motion detector, a light sensor, a temperature sensor, and an infrared receiver in a single compact device.

Category:

Description

The EC-Multi-Sensor Series combines a motion detector, a light sensor, a temperature sensor, and an infrared receiver in a single compact device.

  • “4-in-1” communicating sensors – one wire, one connection, three (3) sensing capabilities (temperature, luminosity, and motion
    sensing) and infrared reception
  • Optimize energy use according to the actual building’s conditions:
    • Control heating and cooling setback through motion sensing and temperature measurement
    • Control lighting through occupancy detection
  • Compact style and discreet in-ceiling installation for optimized motion sensing performance
  • Adjustable motion sensing sensitivity to fine tune presence detection
  • Luminosity sensor features human-eye response for precise illuminance measurement under diverse lighting conditions
  • Both power and communications pass through a single Cat 5e cable for reduced installation costs and for easier installation or system retrofit
  • Daisy-chaining capabilities for maximum adjustment to the actual room characteristics (requires an ECx-Subnet-Adapter – not provided)
  • Compatible with the EC-Remote Series for a user-friendly management of all the room comfort parameters
  • Directly adressable via a rotary switch to facilitate configuration
